15.4" 1280x800 TFT LCD Screen and VGA LVDs Controller Board 30pin
Product details
| Management number | 221437527 | Release Date | 2026/05/03 | List Price | US$44.00 | Model Number | 221437527 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

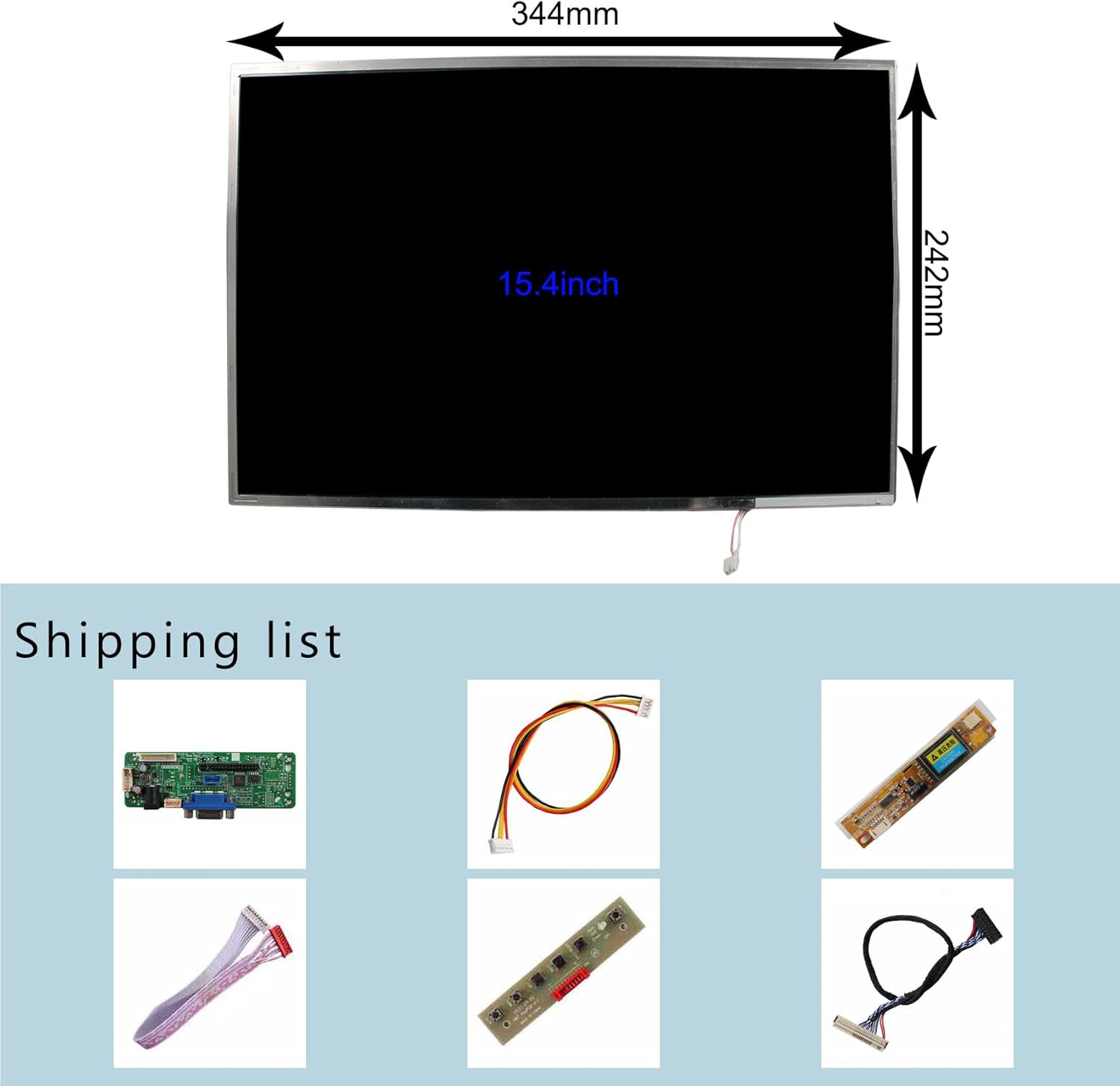

LCD Controller Board: VGA LCD Board Work for LVDS Interface LCD ScreenInput Power Adapter:12Vdc More than 2A.Come In Standby Model When Not Input SignalStandby Model <1WVideo Input: VGAOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size:108mm x 35mm x 18mm15.4" 1280X800 LCD Screen:Display Mode TN, Normally White, TransmissiveResolution 1280RGB)×800Outline Size 344 × 242.5× 6(H×V×D)Display Area 331.56× 207.225 (H×V) Brightness 250 cd/m² (Typ.)Contrast Ratio 400:1 (Typ.) (TM) Viewing Angle 60/60/60/60 (Typ.)(CR≥10) [Left / Right / Up / Down]Interface LVDS (2 ch, 6-bit) , Connector , 30 pinsBacklight 1CCFLInput Voltage 3.3V (Typ.Packing list :1× VGA LCD Controller Board RT2270C-8061×15.4inch 1280x800 (One of B154EW01/02/03/04/06/08 LTN154AT01/07/10 LTN154W1-L01 LTN154X3-L01 N154I3-L02 LP154W01 LP154WX3 LP154WX4 LP154W01 N154I2)1× Inverter Board1× LVDS Cable1× Keyboard With Cable
- 【Screen Advantages】15" industrial screen with location holes,4:3 aspect ratio ,IPS full viewing angle ,350nit high brightness .Outline Size 331.6× 254.7×13(H×V×D)mm,Display Area 304.1 × 228.1 (H×V).mm,Interface LVDS (1 ch, 8-bit) , 20 pins , Connector,Backlight 4CCFL.
- 【LCD Controller Board】 Video input: DVI VGA ,Power supply :12V DC more than 2A ,port size :5.5x2.1mm,Pls prepare the power adapter by yourself.
- 【Plug and play】 No need driver installed ,Directly connecting for the cables and ports according to link picture details ,power on ,the LED light on keyboard will be green ,then enter into ,with correct resolution,the screen can work well. Any problem ,Pls provide your screen model no. and connecting pictures, we will solve in 12 hours.
- 【Applications】 This screen is relatively heavy ,usually used to work as industrial monitor,with DVI /VGA port ,can connect wirh pc computer or other industrial machines , etc..
- 【Packing lists】1× VGA+DVI LCD Controller Board RT2281,1× 15inch LQ150X1LW73 1024X768 LCD Screen,1× 4 CCFL Inverter Board,1× Inverter Board,1× LVDS Cable,1× Keyboard With Cable
| Item Weight | 1.32 pounds |
|---|---|
| Manufacturer | FanyiTek |
| Package Dimensions | 11.81 x 8.27 x 3.15 inches |
