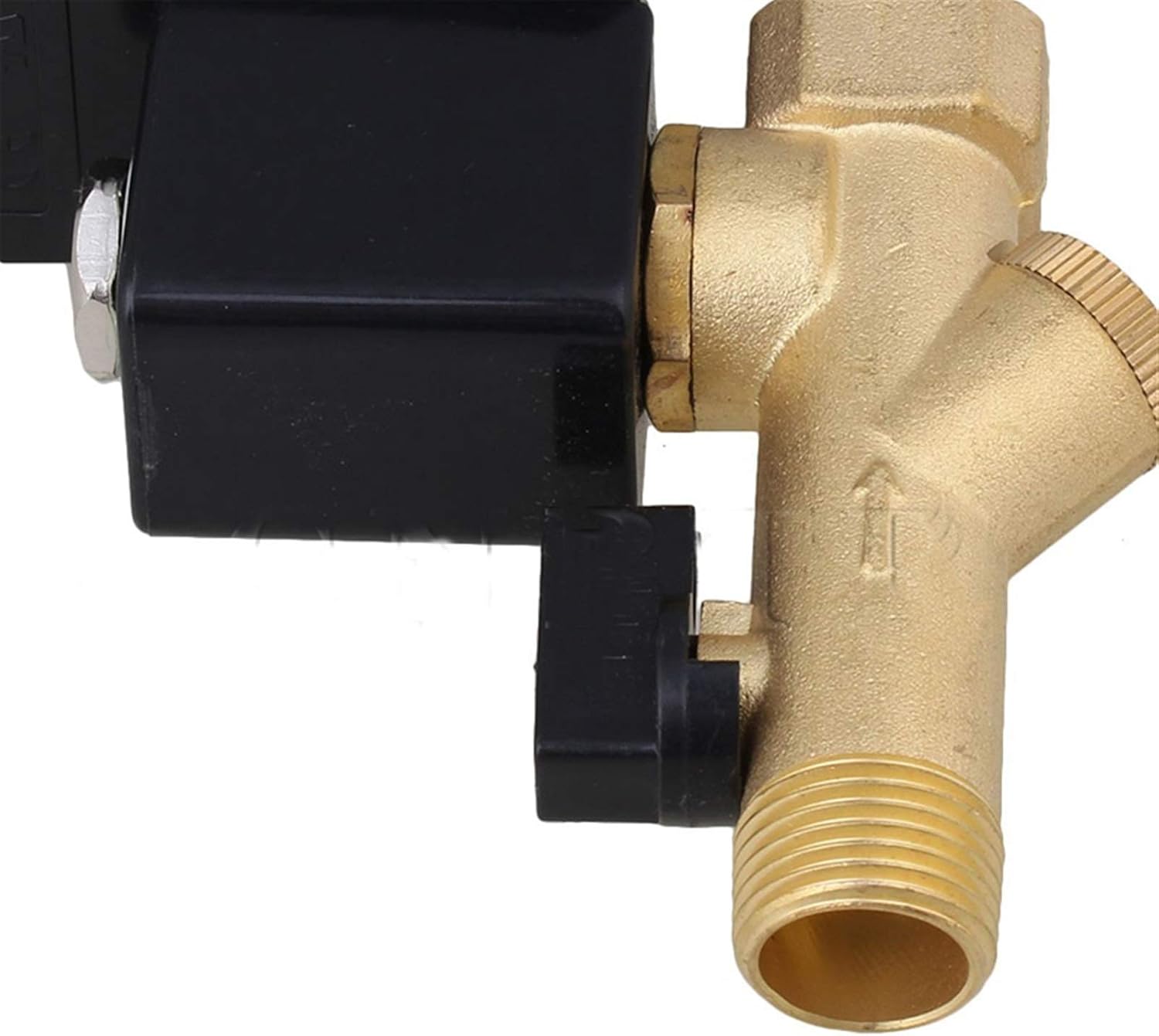

DOLUNTO 1/2Inch DN15 Automatic Electronic Drainer 24V 110V 220V 380V Electronic Timed Air Compressed Gas Tank Drain Valve (Size : Type 2, Color : DC 24V)

Type: two two direct-acting valveShell material: flame retardant ABS plasticManual test button ( micro switch )Size: as picture shownVoltage: DC24V/AC110V/AC220V/AC380VTime interval (OFF): 0.5--45 minutesDischarge time (ON): 0.5--10 secondsAmbient temperature: -40°C to 60°CElectrical connection: DIN43650AInterface: G1 / 2" internal threadThe current consumption of the largest 4mAMaximum working pressure: 1.6MpaMaximum temperature: 90°CForging brass valve, flow aperture of 5 mmInsulation class: H levelProtection grade: IP65Voltage range: ±10%Feature:Electronic drain valve to solid-state electronic timer and solenoid valve to match the time to achieve automatic discharge of compressed air condensate.Discharge time and interval time can be adjusted according to different needs.Easy to install, fully automatic operation.Durable in use.Used in filters, oil-water separator, refrigerated dryers, cold and dry machines, air compressors, air cylinders, dripping feet and other compressed air system components.Package included:1pc * Electronic Timed Drain Valve or 1pc * ControllerNote:Please allow 1-5mm errors due to manual measurement.Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.The inner hole adopts special processing technology, which has low wear, low starting pressure and long service life. Good sealing and responsive. The thread is clear and deep, and the force is uniform.

• Voltage: DC24V/AC110V/AC220V/AC380V
• Time interval (OFF): 0.5--45 minutes
• Discharge time (ON): 0.5--10 seconds
• Ambient temperature: -40°C to 60°C
• Electrical connection: DIN43650A
